Android:Handler、Message、MessageQueue、Looper

Posted by AlexWan on 2016-06-28

Android中引入消息事件驱动的机制。每个Thread通过ThreadLocal来绑定一个Looper对象,每个Looper对应一个消息队列MessageQueue,在创建一个Handler时,绑定当前线程的MessageQueue,来用来接收消息和分发处理消息。

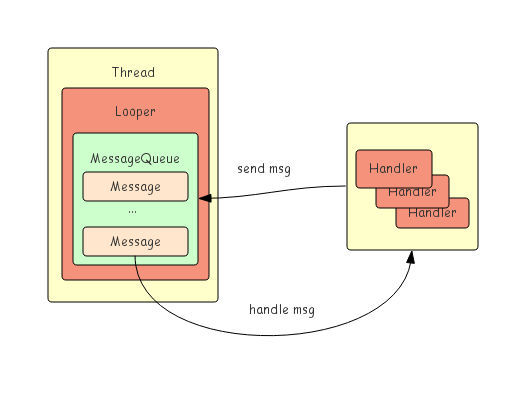

Handler、Message、MessageQueue、Message关系图

一、Handler

1.创建一个Handler

Handler handler = new Handler();

Handler在创建时,都做了什么呢?

Handler.java
public interface Callback {
public boolean handlerMessage(Message msg);
}
...
/*---Handler构造器---*/
/**
* Handler默认构造器,关联当前线程的Looper对象,
* 如果当前线程Looper没有初始化, Handler则抛出异常
*/
public Handler(){
this(null , false);
}
/**
* 关联当前线程Looper对象的Handler构造器,接受一个callback接口来处理Messages
* 如果当前线程Looper没有初始化, Handler无法接收消息并抛出异常
*/
public Handler(Callback callback){
this(callback ,false);
}
/**
* 使用提供的Looper 替换默认Looper的
*/
public Handler(Looper looper) {
this(looper, null, false);
}
/**
* 使用提供的Looper ,接受一个callback接口来处理消息
*/
public Handler(Looper looper, Callback callback) {
this(looper, callback, false);
}
...
/**
* 默认Handler构造 最终会调用这个方法来初始化Handler对象
*/
public Handler(Callback callback , boolean async){
if(FIND_POTENTIAL_LEAKS){
final Class<? extends Handler> klass = getClass();
if ((klass.isAnonymousClass() || klass.isMemberClass() || klass.isLocalClass()) &&
(klass.getModifiers() & Modifier.STATIC) == 0) {
Log.w(TAG, "The following Handler class should be static or leaks might occur: " +
klass.getCanonicalName());
}
// 获取当前线程绑定的Looper
mLooper = Looper.myLooper();
if(mLooper == null){
throw new RuntimeException(
"Can't create handler inside thread that has not called Looper.prepare()");
}
// 绑定Looper的MessageQueue
mQueue = mLooper.mQueue;
mCallback = callback;
mAsynchronous = async;
}
}
/**
* 指定Looper,Callback 初始化Handler
* Handler默认为同步调用
*/
public Handler(Looper looper, Callback callback, boolean async) {
mLooper = looper;
mQueue = looper.mQueue;
mCallback = callback;
mAsynchronous = async;
}
...

每个Handler都关联一个消息队列,消息队列被封装在Looper中,每个Looper又会关联一个Thread,也就是每个消息队列都会关联一个Thread。

2.发送消息

Handler就是一个消息处理器,将消息投递给消息队列,然后再由对应的线程从消息队列中取出消息。
Handler发送消息分为postXXX和sendXXX方法,postXXX方法,接受Runnable对象作为参数

Handler.java
// post
...
public final boolean post(Runnable r){
return sendMessageDelay(getPostMessage(r) , 0);
}
...
// 通过getPostMessage方法把Runnable作为参数分装为Message
private static Message getPostMessage(Runnable r){
Message m = Message.obtain();
m.callback = r;
return m;
}

sendXXX方法用Message对象作为参数。
发送Message的方法最后都调用sendMessageAtTime方法,

Handler.java
public boolean sendMessageAtTime(Message msg, long uptimeMillis) {
// 获得绑定的MessageQueue
MessageQueue queue = mQueue;
if (queue == null) {
RuntimeException e = new RuntimeException(
this + " sendMessageAtTime() called with no mQueue");
Log.w("Looper", e.getMessage(), e);
return false;
}
return enqueueMessage(queue, msg, uptimeMillis);
}
...
private boolean enqueueMessage(MessageQueue queue, Message msg, long uptimeMillis) {
// 将Message target 与当前Handler对象绑定
msg.target = this;
if (mAsynchronous) {
msg.setAsynchronous(true);
}
// 调用MessageQueue的enqueueMessage方法,将消息加入消息队列中
return queue.enqueueMessage(msg, uptimeMillis);
}

Handler发送消息,通过在初始化时绑定的MessageQueue对象,将要发送的消息加入到当线程的唯一的MessageQueue队列中。
那么Handler在哪里来处理从消息队列中发送出的消息呢?答案在Looper源码中

二、Looper

Looper 用来运行循环线程中消息队列,但是默认情况下Thread并没有关联的消息循环。Looper提供prepare()方法将一个Looper对象与Thread来进行关联。并调用loop()方法来开启消息队列的循环任务。比如下面是Looper与Thread关联的经典范例。

Looper.java
class LooperThread extends Thread{
public Handler mHandler;
public void run(){
// init looper here
Looper.prepare();
mHandler = new Handler(){
public void handleMessage(Message msg) {
// 处理接收到的消息
}
};
// start loop message queue here actually
Looper.loop();
}
}
...

Looper调用prepare()将当前线程与Looper对象进行关联

/*
* 构造方法为private , 不能直接通过构造方法直接初始化
* 初始化MessageQueue,与当前线程进行关联
*/
private Looper(boolean quitAllowed) {
mQueue = new MessageQueue(quitAllowed);
mThread = Thread.currentThread();
}
/**
* 初始化当前线程为Looper
*/
public static void prepare() {
prepare(true);
}
// 实际调用
private static void prepare(boolean quitAllowed){
if (sThreadLocal.get() != null) {
throw new RuntimeException("Only one Looper may be created per thread");
}
sThreadLocal.set(new Looper(quitAllowed));
}

Looper在初始化时,先通过ThreadLocal获取当前线程关联的Looper对象,判断是否Thread已经关联过Looper,如果已经关联,抛出异常。如果未关联,在将实例化一个新的Looper实例,并保存到ThreadLocal中
在实例化Looper中,创建MessageQueue对象,关联当前线程。

1.ThreadLocal

什么是ThreadLocal,ThreadLocal是一个关于创建线程局部变量的类。使用ThreadLocal创建的变量只能被当前线程访问,其他线程则无法访问和修改。

  • 实现单个线程单例以及当个线程上下文信息存储
  • 实现线程安全,非线程安全的对象使用ThreadLocal之后变为线程安全。因为每个线程都对应一个实例。
  • 承载一些线程相关的数据,避免在方法中来回传递参数
  • ThreadLocal不会产生内存泄露,ThreadLocal选做Key时,是ThreadLocal实例的弱引用
// a simple threadlocal sample
Thread t = new Thread{
ThreadLocal<String> mStringThreadLocal = new ThreadLocal<String>(){
public void run(){
super.run();
mStringThreadLocal.set("alexwan");
mStringThreadLocal.get();
}
}
}
...
t.start();

ThreadLocal的set方法把当前线程作为key,把需要存储的变量作为值存储在ThreadLocalMap中

ThreadLocal
public class ThreadLocal {
public ThreadLocal(){}
...
public void set(T value){
// get current thread
Thread t = Thread.currentThread();
// get thread local map values;
ThreadLocalMap map = getMap(t);
if( map != null ){
map.set(this , value);
} else {
// create local values map
createMap(t , value);
}
}
...
ThreadLocalMap getMap(Thread t){
return t.threadLocals;
}
...
}

Looper 本地维护一个ThreadLocal对象,保证当前线程中Looper对象的唯一性,

Looper
static final ThreadLocal<Looper> sThreadLocal = new ThreadLocal<Looper>();

2.循环消息队列

执行Looper.prepare()之后,可以在外部通过调用Looper.myLooper()获取当前线程关联的Looper对象。

public static Looper myLooper(){
return sThreadLocal.get();
}

Looper初始化后,调用方法loop()开始执行循环消息的任务

Looper
/**
* 执行循环消息任务,调用quit()方法结束循环
*/
public static void loop() {
// 获取当前线程关联的Looper对象
final Looper me = myLooper();
if (me == null) {
throw new RuntimeException("No Looper; Looper.prepare() wasn't called on this thread.");
}
// Looper实例化时创建的MessageQueue对象
final MessageQueue queue = me.mQueue;
// Make sure the identity of this thread is that of the local process,
// and keep track of what that identity token actually is.
Binder.clearCallingIdentity();
final long ident = Binder.clearCallingIdentity();
for (;;) {
// 无限循环消息队列,调用MessageQueue next()方法取出消息
Message msg = queue.next(); // 可能会阻塞
if (msg == null) {
// No message indicates that the message queue is quitting.
return;
}
// This must be in a local variable, in case a UI event sets the logger
Printer logging = me.mLogging;
if (logging != null) {
logging.println(">>>>> Dispatching to " + msg.target + " " +
msg.callback + ": " + msg.what);
}
// 这里的target对象即是Handler,这里调用的Handler dispatchMessage()方法来处理
// 从消息队列中取出的Message
msg.target.dispatchMessage(msg);
if (logging != null) {
logging.println("<<<<< Finished to " + msg.target + " " + msg.callback);
}
// Make sure that during the course of dispatching the
// identity of the thread wasn't corrupted.
final long newIdent = Binder.clearCallingIdentity();
if (ident != newIdent) {
Log.wtf(TAG, "Thread identity changed from 0x"
+ Long.toHexString(ident) + " to 0x"
+ Long.toHexString(newIdent) + " while dispatching to "
+ msg.target.getClass().getName() + " "
+ msg.callback + " what=" + msg.what);
}
msg.recycleUnchecked();
}
}

Looper获取当前线程关联的Looper对象,通过Looper对象拿到Looper创建的MessageQueue消息队列,对消息队列开启无限循环。从MessageQueue中取消息,如果队列无消息,则等待新的消息。取到消息时,则由Masssge对象绑定的target来分发处理消息。在Handler分析的中Message的target关联就是发送消息的Handler对象。调用Handler的dispatchMessage方法让Handler处理Message

Handler
/**
* Handle system messages here.
*/
public void dispatchMessage(Message msg) {
if (msg.callback != null) {
handleCallback(msg);
} else {
if (mCallback != null) {
if (mCallback.handleMessage(msg)) {
return;
}
}
handleMessage(msg);
}
}

dispatchMessage 只是一个分发的方法,如果callback不为空,表示是Handler是调用postxxx方法发送的消息,callback实际为Runnable对象,此时调用handleCallback方法,则执行callback的run方法。否则判断mCallback是否为空,mCallback是在创建Handler时传递的Callbacl接口对象。如果mCallback接口对象也为空,则具体实现由handler的方法handleMessage实现

private static void handleCallback(Message message) {
message.callback.run();
}
...
/**
* 子类具体实现
*/
public void handleMessage(Message msg) {
}

三、主线程MainThread

Android的程序入口为ActivityThread的main方法,而主线程的Looper也是在这里初始化

ActivityThread
public static void main(String[] args){
...
// Make sure TrustedCertificateStore looks in the right place for CA certificates
final File configDir = Environment.getUserConfigDirectory(UserHandle.myUserId());
TrustedCertificateStore.setDefaultUserDirectory(configDir);
Process.setArgV0("<pre-initialized>");
// 初始化主线程的Looper
Looper.prepareMainLooper();
ActivityThread thread = new ActivityThread();
...
// End of event ActivityThreadMain.
Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
// 开启消息循环
Looper.loop();
...
}
...

主线程的消息队列在AcitivityThread的main中,调用Looper的静态方法prepareMainLooper()来创建,最后调用looper来启动消息循环。
在很多情况下,在线程中执行耗时任务,通过调用主线程Handler更新UI。

Handler handler = new Handler(Looper.getMainLooper()){
@Override
public void handleMessage(Message msg) {
// 更新界面UI TODO
}
};
Thread thread = new Thread(new Runnable() {
@Override
public void run() {
// 处理耗时任务
Message msg = new Message();
// message 设置处理的结果
// 发送带有处理结果的消息
handler.sendMessage(msg);
}
});

四、总结

Android的消息事件机制基本的流程:线程关联有且唯一的Looper对象,Looper对象中维护一个消息队列MessageQueue对象。通过Handler来发送或处理消息Message或Runnable的属性的Message,加入到队列中。Looper对象开启无限的消息循环,来取队列中Message,调用发送消息的Handler的消息分发方法,由开发者来具体处理业务或UI界面的操作。
